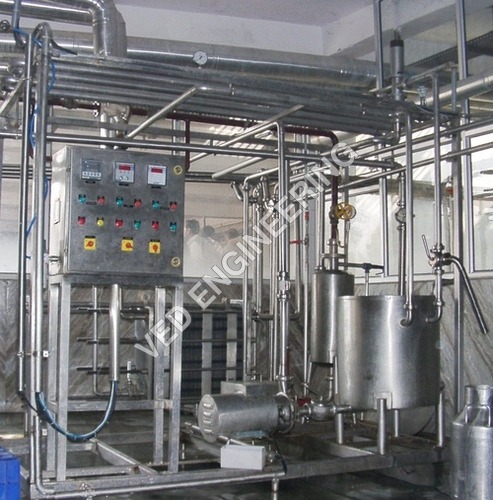

Cream Pasteuriser

Cream Pasteuriser
Send Inquiry
Product Code : 004
Product Description
Product Description:
  • Capacities starting from 200 LPH To 20000 LPH.
System consists of the following system:

A hot water generation system:
  • Steam pipe with bypass assembly to transfer the steam from boiler to hot water PHE
  • The pipeline consists of auto control steam valves, gun metal valves and pressure gauges
  • Hot water PHE to generate hot water from steam
  • The outlet of PHE consists of steam trap for effective condensation and creating back pressure for steam
  • The system consists of hot water pump,buffer vessels, safety valves and make up line for water
Milk Pasteuriser PHE plate pack:

  • The Multi section PHE plate pack is used to heat the milk from room temp
  • To pasteurisation temp. Milk gets hold in holding tube and gets chilled to 4 degree celsius after pasteurisation
  • Provision of milk separator and homogenizer
  • Regeneration efficiency upto 93%

Auto Control Valve:

  • Auto control valve to forward/divert the milk in case temp. reaches set point.
  • Float balance tank
  • Milk pump
  • Milk pipeline and water pipeline
  • Milk valve
  • Temp. Sensors
Electrical panel:
  • Panel to start motors
  • Flow controller for milk
  • Steam controller for steam
  • On/Off; Auto/Manual; Forward/Divert Switches
